Set up floors, zones and desks
Before anyone can book a desk, the building has to exist in DeskDesk. The model is straightforward: a floor belongs to a building and has zones; each zone holds desks; each desk carries equipment metadata (monitor count, sit/stand, accessibility flag, locker code).
Goal
By the end the building is modelled — at least one floor, divided into zones (open-office / quiet / phone-booth / accessible), and each zone populated with desks that carry the metadata users want to filter by.
Prerequisites
- Admin on the Nextcloud instance.
- OpenRegister installed and the DeskDesk register imported (the configuration import runs on app install).
- A rough floor plan or desk list to work from — the metadata model is flexible enough to capture an existing CSV, but you need to know the desk count per zone.
Steps
-
Open Floors from the in-app navigation. On a fresh install the list is empty.
-
Click Add Item. The dialog asks for Name (e.g. "Floor 3"), Building, Capacity, and the Zones relation. Each zone has a Name, Kind (open-office / quiet / phone-booth / accessible), and a Desk count preview.
-
Save the floor. It appears in the Floors list with the zones count visible. Click the floor row to open its detail page, then add desks to each zone — Display name, Equipment (multi-select: monitor, dual-monitor, sit-stand, dock), Accessibility flag, Locker code (optional).
-

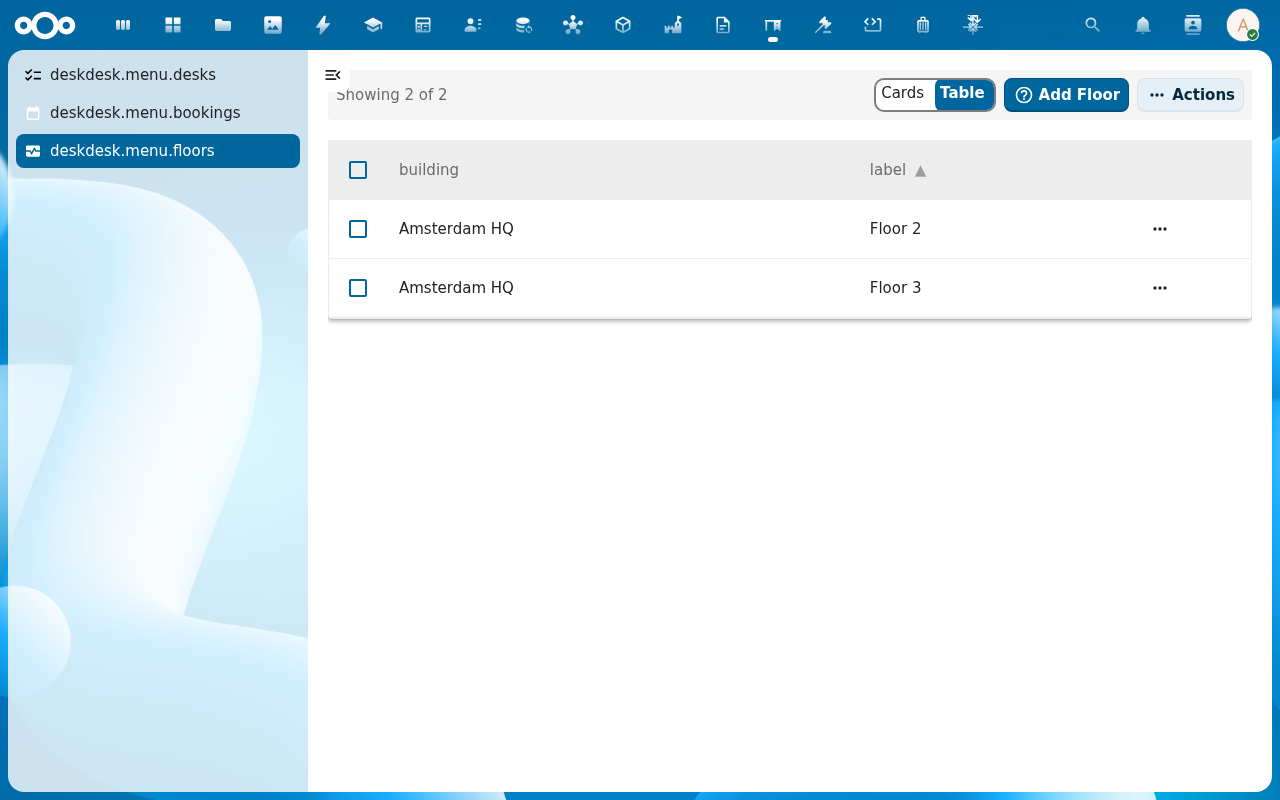

Repeat for every floor in the building. The Floors list summarises building / floor count / total desks — handy for a quick sanity check before opening DeskDesk up to the org.
Verification
The Floors list shows each floor with the right zone count and total desk count. Opening DeskDesk as a regular user surfaces the floor picker populated with these floors; the desks index renders the cards with the equipment metadata.
Common issues
| Symptom | Fix |
|---|---|
| Add Item dialog has no zone fields | The zone schema is not mapped — re-run the configuration import from the admin settings page. |
| Saved a floor but it does not appear in the user's floor picker | Browser cache — hard-reload (Ctrl-Shift-R). Vue Router caches the floor list for ~1 minute. |
| Cannot delete a floor with bookings against its desks | DeskDesk refuses cascading deletes that would orphan bookings. Cancel the bookings first, or move them to a different desk, then delete the floor. |
Reference
- Configure the knowledge source — next admin step.
- Browse desks — the user-facing view of what you just set up.
